TFTDBE-5H

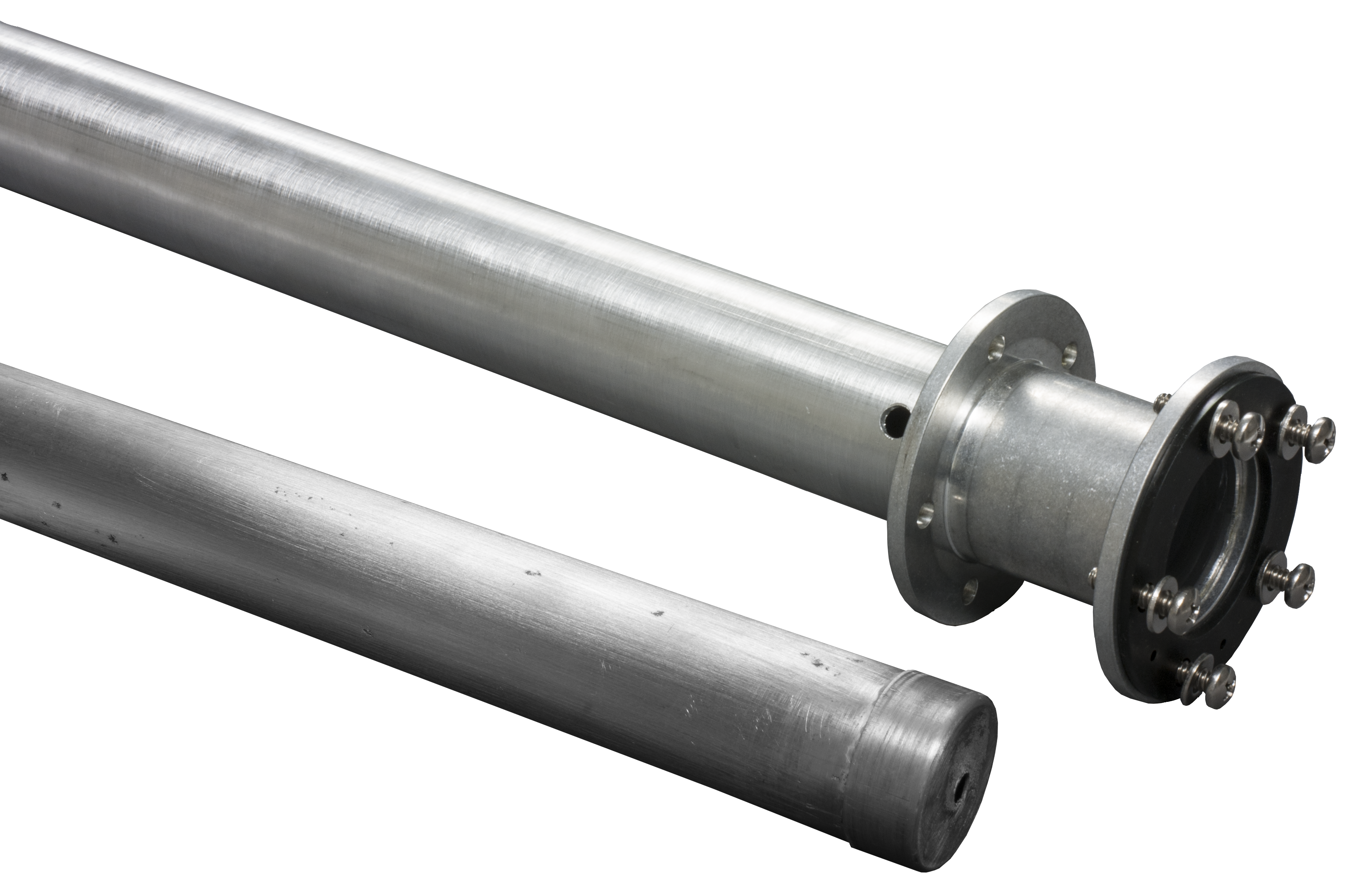

SAE 5-Bolt Pattern Focus Tube with Dead Band Eliminator
- Focus tubes extend TLM100/TLM150 capabilities to 15° pitch or roll on non-displacement hulls.
- With a focus tube, enabling accurate measurement up to the tank's top.
- Deadband is eliminated, enhancing precision in
Focus tubes extend TLM100/TLM150 capabilities to 15° pitch or roll on non-displacement hulls. With a focus tube, TLM100/TLM150 sits 2” above the tank, enabling accurate measurement up to the tank's top. Deadband is eliminated, enhancing precision in
Nog vragen?
Heeft u direct hulp nodig? Neem dan contact met ons op door ons serviceaanvraagformulier in te vullen, of neem contact op met onze serviceafdeling via +31 10 453 4077. Ons team helpt u graag met al uw vragen.
Focus tubes allow the TLM100/TLM150 ultrasonic tank level monitors to be used for level measurement on vessels with non-displacement hulls at up to 15° of pitch or roll, compared to 6° pitch or roll for the sensor alone. Additionally, the focus tube with deadband eliminator raises the TLM100/TLM150 2” above the top of the tank, allowing accurate level measurement with fluid levels all the way to the top of the tank, and eliminating the 2” deadband of the TLM100/TLM150.
